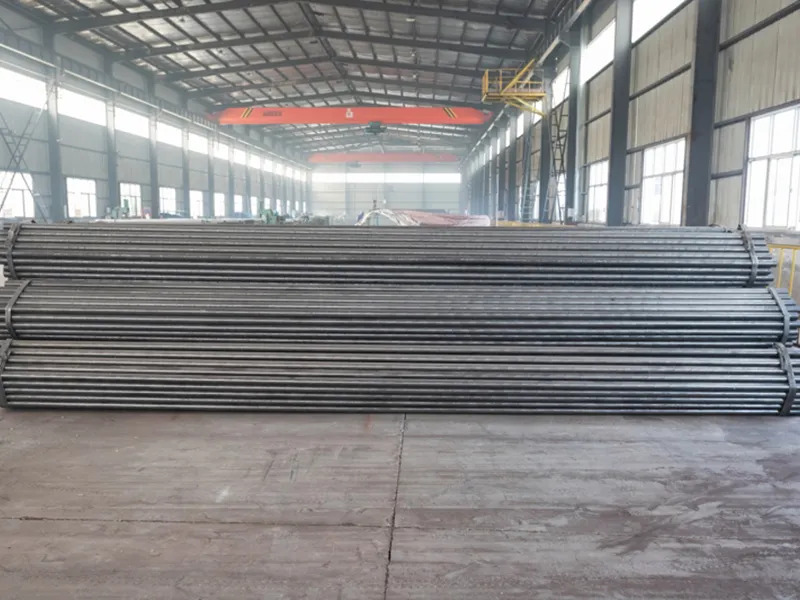

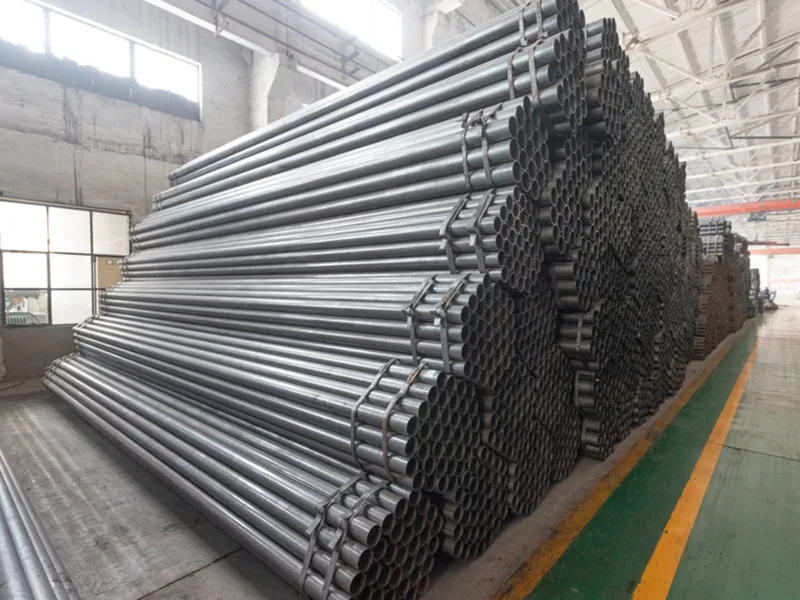

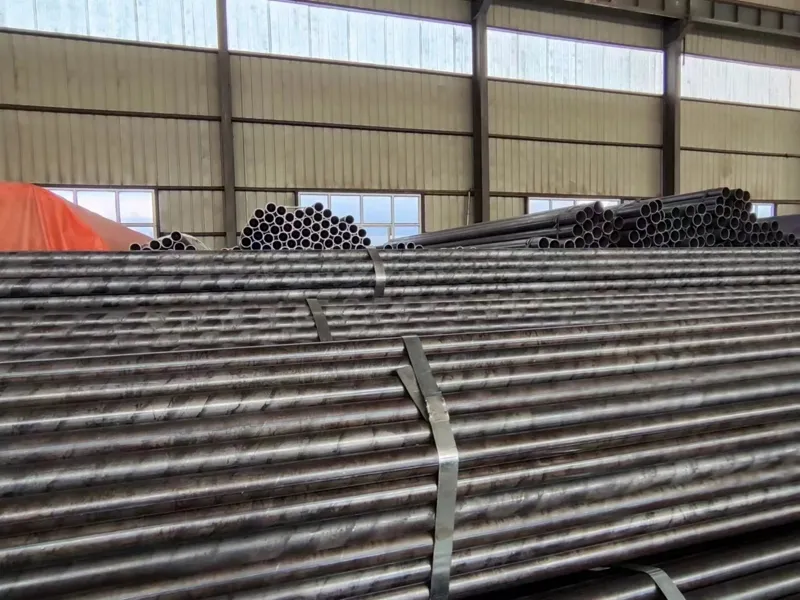

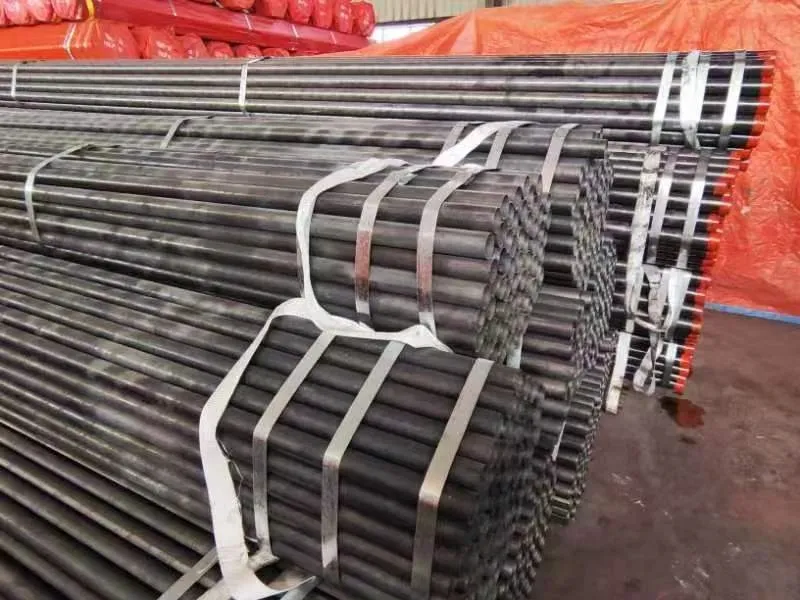

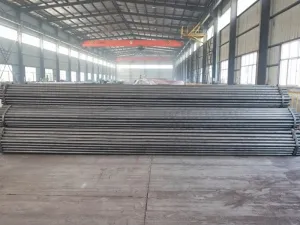

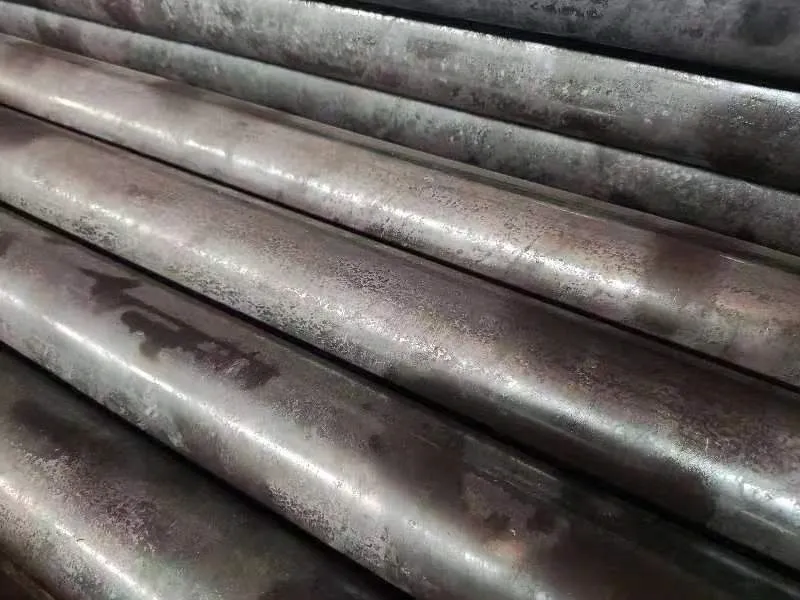

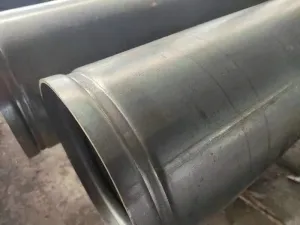

China Steel Pipe Group offers oil coated ERW steel pipes, a specialized option that undergoes a surface treatment with low-viscosity, environmentally-friendly anti-rust oil. This protective oil coating significantly reduces the risk of corrosion, thereby extending the operational lifespan of the pipes under various environmental conditions.
The anti-rust oil finish is applied to each pipe, ensuring a consistent protective barrier across all surfaces, designed to provide both durability and flexibility, accommodating specific requirements for various applications where moisture exposure is a concern, such as in underground or outdoor settings, making it a reliable choice for industries that prioritize longevity and corrosion resistance in their piping systems.

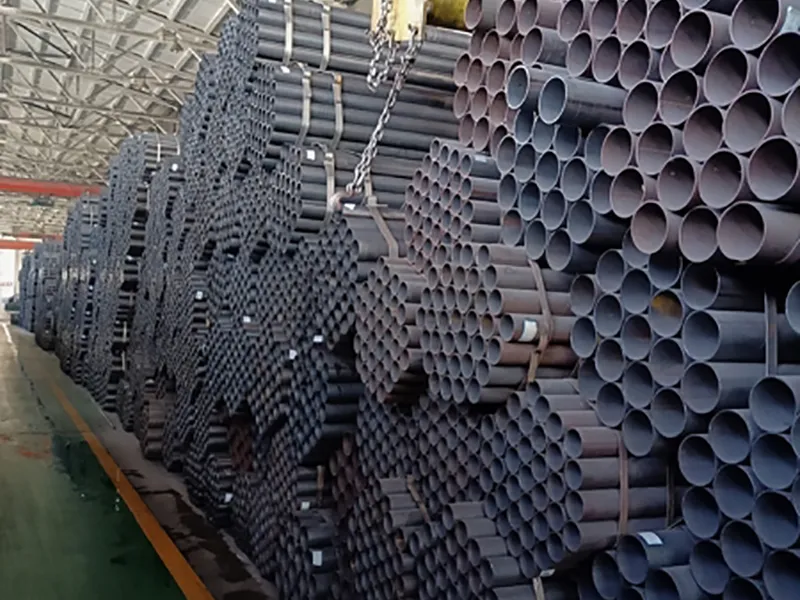

Round tube: 21.3mm to 609.6mm

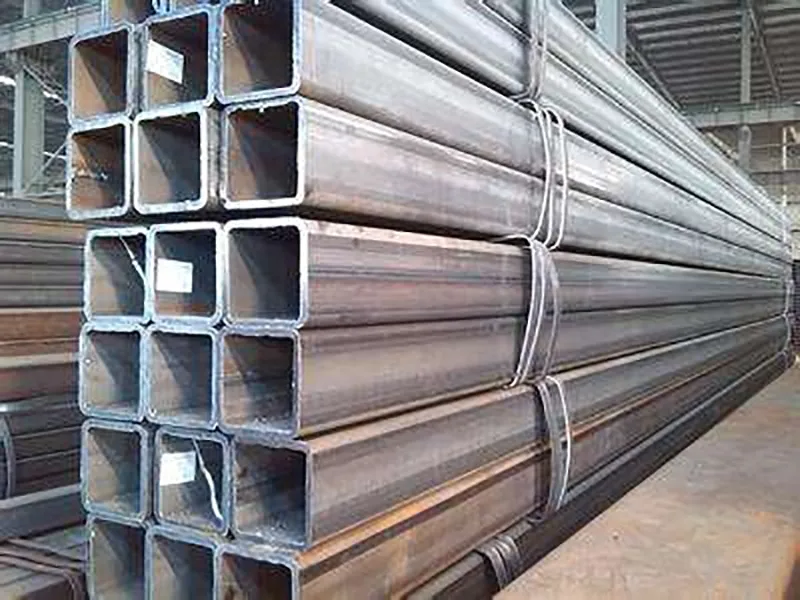

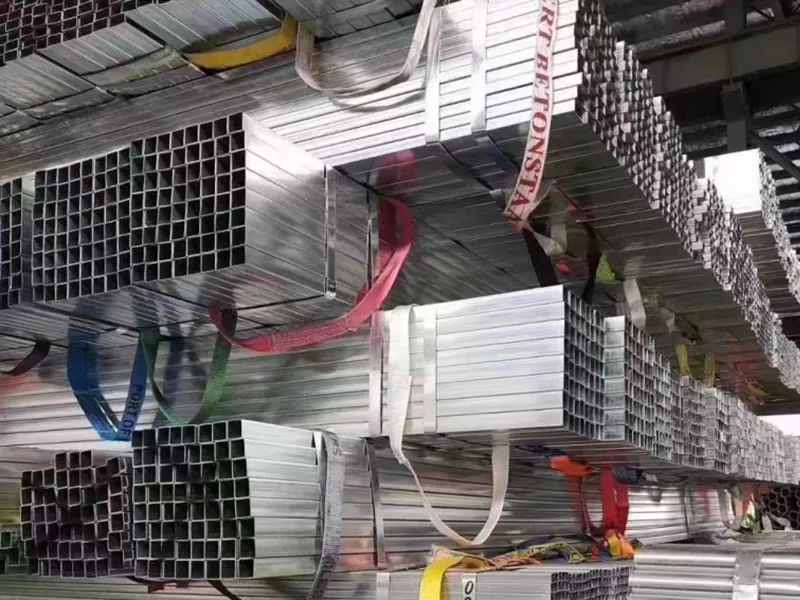

Square tube: 10×10mm to 200×200mm
Rectangular tube: 20×40mm to 80×120mm
Regular length: 5.8m or 6m or 12m

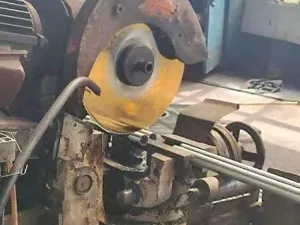

Custom cut-to-length: 2m to 12m
Plain End

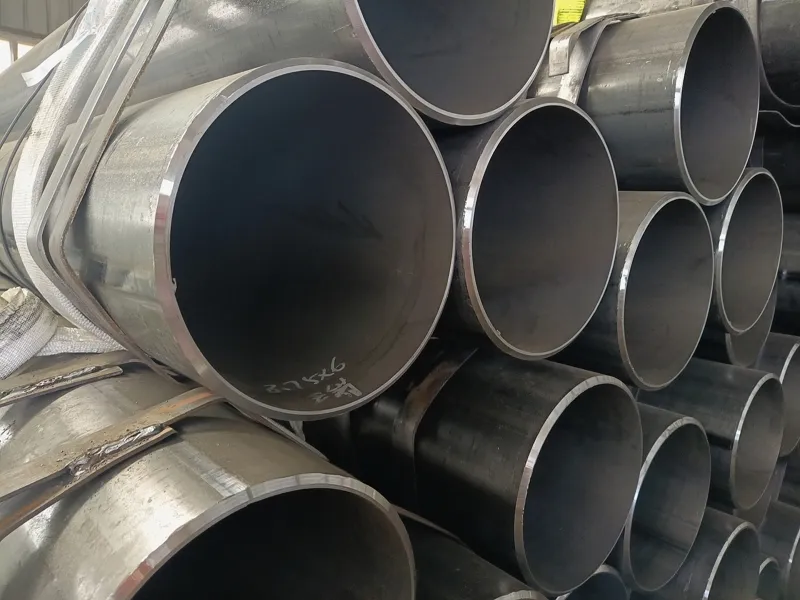

Beveled End

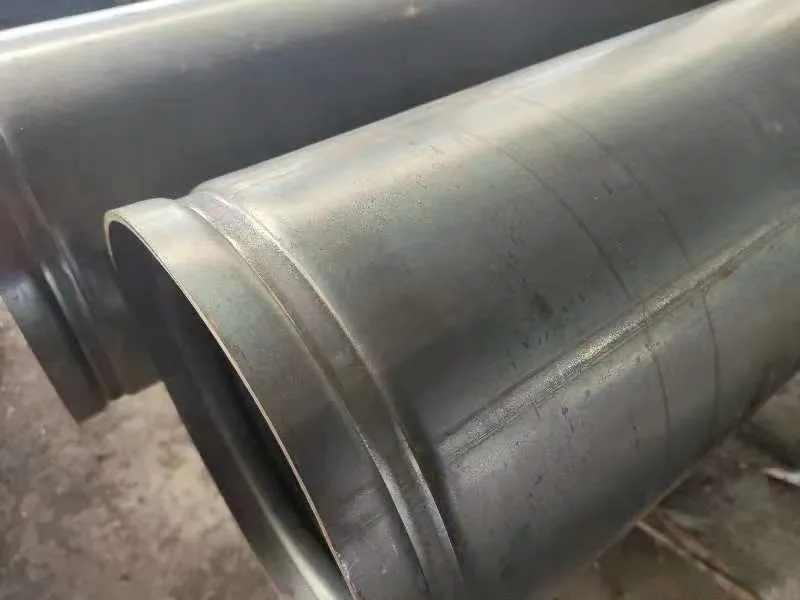

Grooved End

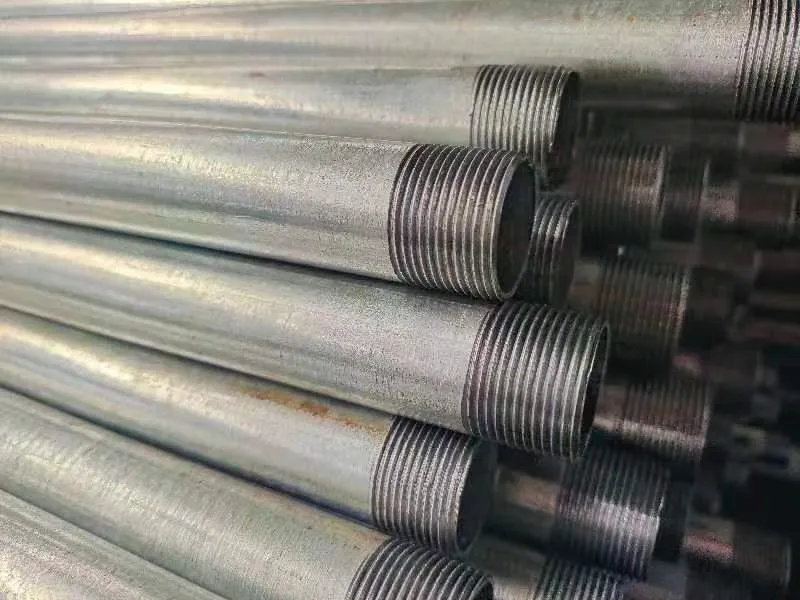

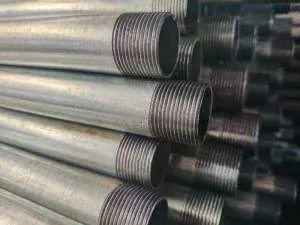

Threaded End
| British Standards: BS 1387-85 XL | |||||
| DN | Designation of Thread | Outside Diameter | Wall Thickness | ||
| (mm) | (inch) | (mm) | (inch) | ||
| 15 | 1/2 | 21.40-21.00 | 0.843-0.827 | 1.80 | 0.071 |
| 20 | 3/4' | 26.90-26.40 | 1.059-1.039 | 2.00 | 0.079 |
| 25 | 1' | 33.80-33.20 | 1.331-1.307 | 2.00 | 0.079 |
| 32 | 1-1/4' | 4250-41.90 | 1673-1.650 | 2.00 | 0.079 |
| 40 | 1-1/2' | 48.40-47.80 | 1.906-1.882 | 2.3 | 0.091 |
| 50 | 2' | 60.20-59.60 | 2.370-2.346 | 2.30 | 0.091 |
| 65 | 2-1/2' | 76.00-7520 | 2.992-2.961 | 2.60 | 0.102 |
| 80 | 3' | 88.70-87.90 | 3.492-3.461 | 2.60 | 0.102 |
| 100 | 4' | 113.90-113.00 | 4.484-4.449 | 3.20 | 0.126 |
| British Standards: BS 1387-85L | |||||
| DN | Designation of Thread | Outside Diameter | Wall Thickness | ||
| (mm) | (inch) | (mm) | (inch) | ||
| 15 | 1/2' | 21.40-21.00 | 0.843-0.827 | 2.00 | 0.079 |
| 20 | 3/4' | 26.90-26.40 | 1.059-1.039 | 2.30 | 0.091 |
| 25 | 1' | 33.80-33.20 | 1.331-1.307 | 2.60 | 0.102 |
| 32 | 1-1/4' | 4250-41.90 | 1.673-1.65 | 2.60 | 0.102 |
| 40 | 1-1/2' | 48.40-47.80 | 1.906-1.882 | 2.90 | 0.11 |
| 50 | 2' | 60.20-59.60 | 2.370-2.346 | 2.90 | 0.114 |
| 65 | 2-1/2' | 76.00-75.20 | 2.992-2.961 | 3.2 | 0.126 |
| 80 | 3' | 88.70-87.90 | 3.492-3.461 | 3.20 | 0.126 |
| 100 | 4' | 113.90=113.00 | 4.484-4.449 | 3.60 | 0.142 |
| British Standards: BS 1387-85 M | ||||||
| DN | Designation of Thread | Outside Diameter | Wall Thickness | |||
| (mm) | (inch) | (mm) | (inch) | |||
| 15 | 1/2' | 21.70-21.10 | 0.854-0.831 | 2.6 | 0.102 | |
| 20 | 3/4' | 27.20-26.60 | 1.071-1.047 | 2.6 | 0.102 | |
| 25 | 1' | 34.20-33.40 | 1.346-1.315 | 3.2 | 0.126 | |
| 32 | 1-1/4' | 42.90-42.10 | 1.689-1.657 | 3.2 | 0.126 | |
| 40 | 1-1/2' | 48.80-48.00 | 1.921-1.890 | 3.2 | 0.126 | |
| 50 | 2' | 60.80-59.80 | 2.394-2.354 | 3.6 | 0.142 | |
| 65 | 2-1/2' | 76.60-75.40 | 3.016-2.969 | 3.6 | 0.142 | |
| 80 | 3' | 89.50-88.10 | 3.524-3.469 | 4 | 0.157 | |
| 100 | 4' | 114.90-113.30 | 4.524-4.461 | 4.5 | 0.177 | |
| 150 | 6' | 166.10-164.10 | 6.539-6.461 | 5 | 0.197 | |
| ANSI Standards: ASTM A53 GRADE A SCH40 | ||||
| NPS | Outside Diameter | Wall Thickness | ||
| (mm) | (inch) | (mm) | (inch) | |
| 1/2' | 21.30 | 0.840 | 2.77 | 0.109 |
| 3/4' | 26.70 | 1.050 | 2.87 | 0.113 |
| 1' | 33.40 | 1.315 | 3.38 | 0.133 |
| 1-1/4' | 42.20 | 1.660 | 3.56 | 0.140 |
| 1-1/2' | 48.30 | 1.900 | 3.68 | 0.145 |
| 2' | 60.30 | 2.375 | 3.91 | 0.154 |
| 2-1/2' | 73.00 | 2.875 | 5.16 | 0.203 |
| 3' | 88.90 | 3.500 | 5.49 | 0.216 |
| 4' | 114.30 | 4.500 | 6.02 | 0.237 |
| 6' | 168.30 | 6.625 | 7.11 | 0.280 |
| 8' | 219.10 | 8.625 | 8.18 | 0.322 |
